Model No: P00000058
Steel fume hood
ZOYET steel fume hood protect laboratory staff from noxious fumes when working with acids, dangerous gas, organic solvents, etc. Harmful and unpleasant chemical fumes are removed from the controlled environment to facilitate a safe and pleasant work environment.
Quantity :

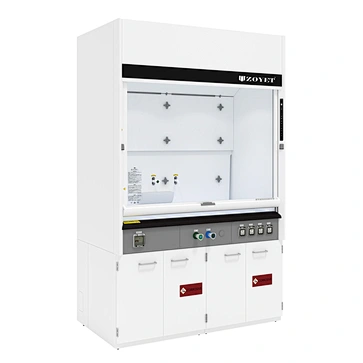

STEEL FUME HOOD
The wind speed on the fume hood surface is 0.3-0.5m/s, cost-effective, and suitable for most chemical labs.
The main body is made of 1.0mm thick cold-rolled steel plate with epoxy surface. The upper cabinet side panel is integrated,
with a door handle adjusted to door width for easier use. The lower guide wing uses a porous design for excellent fluid performance.
Two double-door storage cabinets are in the bottom cabinet and can connect to the exhaust system.
The electrical system includes 1 set of 25A leakage circuit breaker and 4 10A three-hole dust-proof sockets.
Complies with: ASHRAE 110-2016 standards.
The main body is made of 1.0mm thick cold-rolled steel plate with epoxy surface. The upper cabinet side panel is integrated,
with a door handle adjusted to door width for easier use. The lower guide wing uses a porous design for excellent fluid performance.
Two double-door storage cabinets are in the bottom cabinet and can connect to the exhaust system.
The electrical system includes 1 set of 25A leakage circuit breaker and 4 10A three-hole dust-proof sockets.
Complies with: ASHRAE 110-2016 standards.
SPECIFICATION
| Model | ZYTS1200 | ZYTS1500 | ZYTS1800 | |
External Dims H x W x D mm | 1200*900*2350 | 1500*900*2350 | 1800*900*2350 | |
Operating width mm | 920 | 1220 | 1520 | |
Adjusting door opening height mm | ≤ 720mm | |||
Internal height mm | 1100 | |||
Internal depth mm | 630 | |||
Diameter of oxygen mask mm | 250 | 250 | 315 | |
The distance from the gas collection hood center to the rear dimension mm | 210 | |||
| Work area lighting | ≥ 500lux | |||
| Alternative | VAV、CAV、Water valve、 Air valve | |||
| Materials | Main structure | Cold rolled steel plate, surface epoxy resin spraying | ||
| Adjustable door | Tempered glass | |||
| Tabletop | Configure on demand | |||
| Lining/deflector | Configure on demand | |||
| Undercabinet | Double doors cabinet | |||

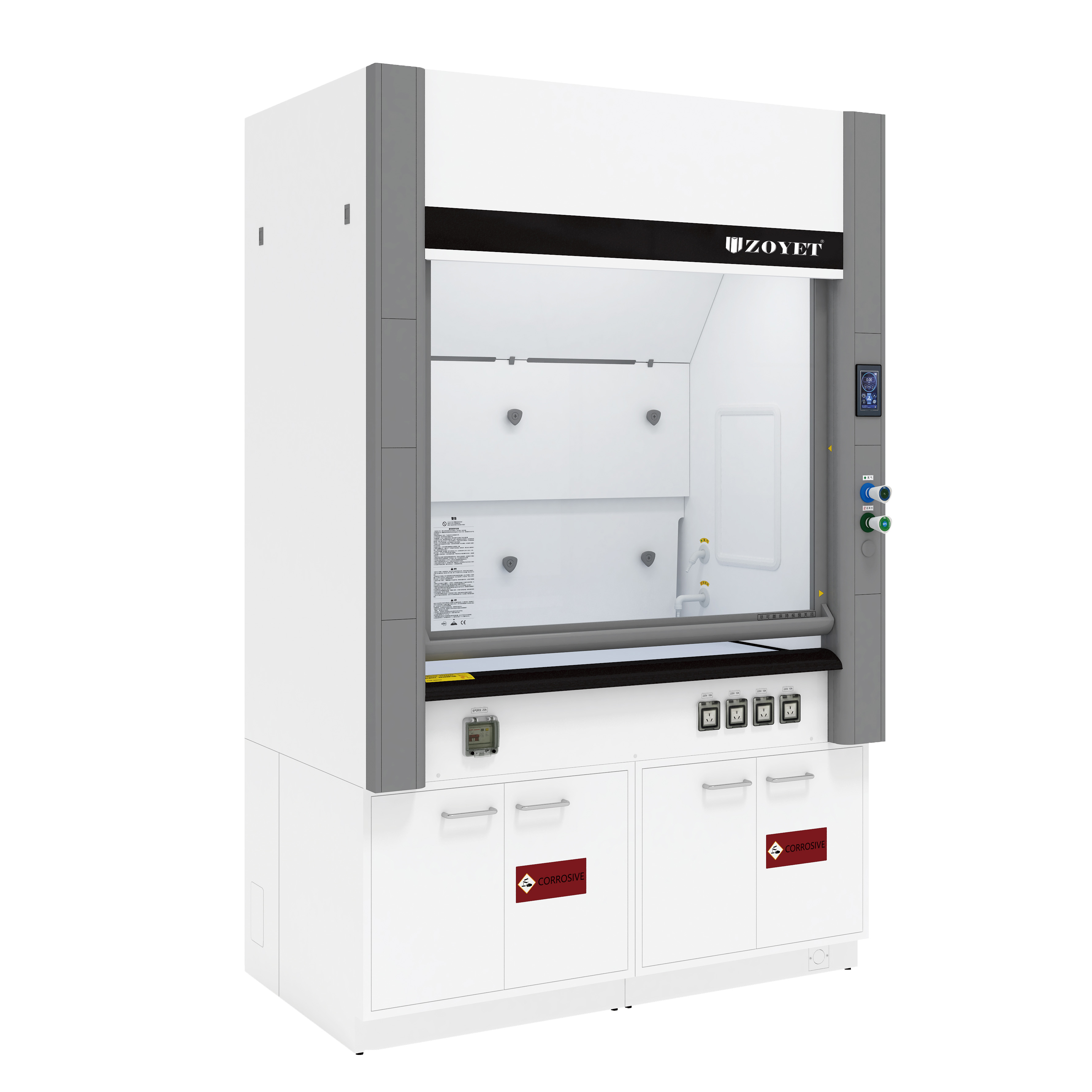

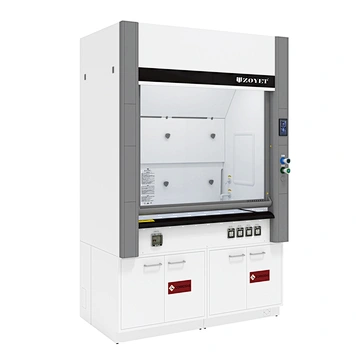

HIGH-PERFORMANCE STEEL FUME HOOD
The fume hood maintains safety even in low wind conditions with a surface wind speed of 0.3-0.5m/s and strong anti-interference and dilution capabilities.
The body is constructed from cold-rolled steel plate (with a thickness of no less than 1.2mm) that has been sprayed with epoxy resin. The upper cabinet side frames, lower guide wings, and adjustable door frames/handles are made from industrial-grade aluminum alloy profiles that feature an arc-shaped design with an excellent fluid structure.
The adjustable door has an anti-falling function, which prevents accidents if the synchronous belt suddenly breaks. The front of the side frames contains multiple functional panels that can be adjusted according to needs. The lower guide wing is highly corrosion-resistant, and the door handle is easy to operate. The base cabinet comes with two sets of double-door storage cabinets as standard, but can be upgraded to frame support upon request. Customers can choose from a range of functional cabinets.
ZOYET safety cabinet can be connected to the exhaust system.
The electrical system includes a 25A leakage circuit breaker and four 10A three-hole dust-proof sockets.
Comply with: ASHRAE 110-2016, EN14175-3:2019 standard.
The body is constructed from cold-rolled steel plate (with a thickness of no less than 1.2mm) that has been sprayed with epoxy resin. The upper cabinet side frames, lower guide wings, and adjustable door frames/handles are made from industrial-grade aluminum alloy profiles that feature an arc-shaped design with an excellent fluid structure.
The adjustable door has an anti-falling function, which prevents accidents if the synchronous belt suddenly breaks. The front of the side frames contains multiple functional panels that can be adjusted according to needs. The lower guide wing is highly corrosion-resistant, and the door handle is easy to operate. The base cabinet comes with two sets of double-door storage cabinets as standard, but can be upgraded to frame support upon request. Customers can choose from a range of functional cabinets.
ZOYET safety cabinet can be connected to the exhaust system.
The electrical system includes a 25A leakage circuit breaker and four 10A three-hole dust-proof sockets.
Comply with: ASHRAE 110-2016, EN14175-3:2019 standard.
SPECIFICATION
| Model | |||||
External Dims H x W x D mm | 1200*900*2350 | 1500*900*2350 | 1800*900*2350 | ||
Operating width mm | 920 | 1220 | 1520 | ||
Adjusting door opening height mm | ≤ 720 | ||||
Internal height mm | 1120 | ||||
Internal depth mm | 650 | ||||
Diameter of oxygen mask mm | 250 | 250 | 315 | ||
The distance from the gas collection hood center to the rear dimension mm | 205 | ||||
| Work area lighting | ≥ 500lux | ||||
| Alternative | VAV、CAV、Water valve、 Air valve | ||||
| Materials | Main structure | Cold rolled steel plate, surface epoxy resin spraying | |||
| Adjustable door | Tempered glass | ||||
| Tabletop | Configure on demand | ||||
| Lining/deflector | Configure on demand | ||||
| Undercabinet | Double doors cabinet | ||||

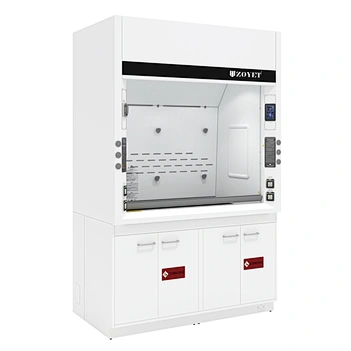

EUROPEAN STANDARD STEEL FUME HOOD
The fume hood operates at 0.2-0.5m/s, which reduces energy consumption and improves efficiency.
Its anti-interference ability is enhanced by the new auxiliary airflow feature. The European design concept includes narrow side frames, which provide a larger working space.
The metal frame structure is strong and fire-resistant, ensuring safety. Improved auxiliary airflow distribution enhances the efficiency and stability of the exhaust hood, making it even safer.
The body is constructed from cold-rolled steel plate (with a thickness of no less than 1.2mm) that has been sprayed with epoxy resin.
The upper cabinet side frames, lower guide wings, and adjustable door frames/handles are made from industrial-grade aluminum alloy profiles that feature an arc-shaped design with an excellent fluid structure.
The adjustable door has safety features including an anti-falling function and an anti-dripping function. If the synchronous belt breaks, the door will remain in place to prevent accidents. Liquid on the inner surface of the door will collect in the liquid collection groove, and flow out to drip onto the work surface.
A pressure release device is located at the top of the inner cavity. The middle cabinet has a flexible expansion area for adjusting functions as needed. The lower guide wing surface is highly corrosion-resistant, and the adjustable door handle is easy to operate. The adjustable door can be lifted vertically or opened horizontally，with a height limit mechanism that locked when opened to 500mm height ,and can be easily unlocked with one hand. The base cabinet includes two sets of double-door storage cabinets as standard and can be upgraded to frame support. Customers can choose from a range of functional cabinets.
ZOYET safety cabinet can be connected to the exhaust system.
The electrical system includes a 25A leakage circuit breaker and four 10A three-hole dust-proof sockets.
Comply with: ASHRAE 110-2016, EN14175-3:2019 standard.
Its anti-interference ability is enhanced by the new auxiliary airflow feature. The European design concept includes narrow side frames, which provide a larger working space.
The metal frame structure is strong and fire-resistant, ensuring safety. Improved auxiliary airflow distribution enhances the efficiency and stability of the exhaust hood, making it even safer.
The body is constructed from cold-rolled steel plate (with a thickness of no less than 1.2mm) that has been sprayed with epoxy resin.
The upper cabinet side frames, lower guide wings, and adjustable door frames/handles are made from industrial-grade aluminum alloy profiles that feature an arc-shaped design with an excellent fluid structure.
The adjustable door has safety features including an anti-falling function and an anti-dripping function. If the synchronous belt breaks, the door will remain in place to prevent accidents. Liquid on the inner surface of the door will collect in the liquid collection groove, and flow out to drip onto the work surface.
A pressure release device is located at the top of the inner cavity. The middle cabinet has a flexible expansion area for adjusting functions as needed. The lower guide wing surface is highly corrosion-resistant, and the adjustable door handle is easy to operate. The adjustable door can be lifted vertically or opened horizontally，with a height limit mechanism that locked when opened to 500mm height ,and can be easily unlocked with one hand. The base cabinet includes two sets of double-door storage cabinets as standard and can be upgraded to frame support. Customers can choose from a range of functional cabinets.
ZOYET safety cabinet can be connected to the exhaust system.
The electrical system includes a 25A leakage circuit breaker and four 10A three-hole dust-proof sockets.
Comply with: ASHRAE 110-2016, EN14175-3:2019 standard.
SPECIFICATION
| Model | |||||
External Dims H x W x D mm | 1500*900*2700 | 1800*900*2700 | |||
Operating width mm | 1408 | 1708 | |||
Adjusting door opening height mm | ≤ 800 | ||||
Internal height mm | 1470 | ||||
Internal depth mm | 650 | ||||
Diameter of oxygen mask mm | 250 | 315 | |||
The distance from the gas collection hood center to the rear dimension mm | 240 | ||||
| Work area lighting | ≥ 500lux | ||||
| Alternative | VAV、CAV、Water valve、 Air valve | ||||
| Materials | Main structure | Cold rolled steel plate, surface epoxy resin spraying | |||
| Adjustable door | Tempered glass | ||||
| Tabletop | Configure on demand | ||||
| Lining/deflector | Configure on demand | ||||
| Undercabinet | Double doors cabinet | ||||
PRODUCT APPLICATION
ZOYET steel fume hood protect laboratory staff from noxious fumes when working with acids, dangerous gas, organic solvents, etc. Harmful and unpleasant chemical fumes are removed from the controlled environment to facilitate a safe and pleasant work environment.
