Model No: CP.17.0009
Emergency shower and eye wash station
Huanawell Emergency eye shower and eyewash stations are essential equipment for every industry that uses chemical and hazardous substances
Quantity :
EMERGENCY SHOWER AND EYE WASH STATION
An eyewash shower, also known as an emergency shower or safety shower, is a device used for quickly rinsing the eyes and body in the event of exposure to hazardous materials.
This product is safety device for emergency treatment in hazardous work areas and laboratories in pharmaceutical,chemical，petrochemical. electronics,and semiconductor companies.
SPECIFICATION
Model | ZYES01-S | ZYES02-S | ZYES03-A | ZYES04-A | ZYES08-S | ZYES-ME01 |
Outer dimensi height mm | 2480 | 2480 | 2480 | 2480 | 2480 | 2480 |

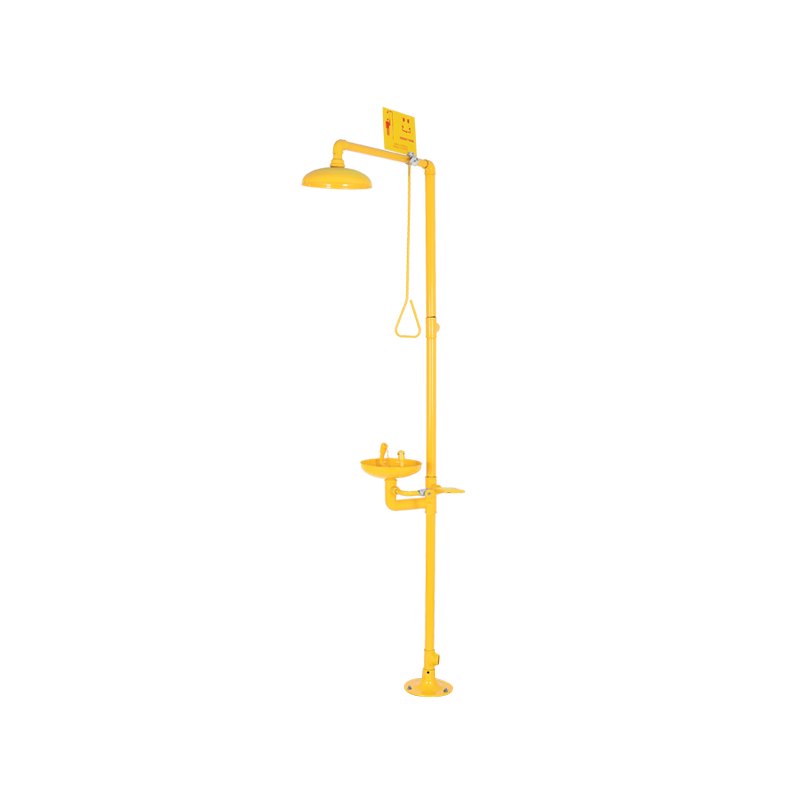

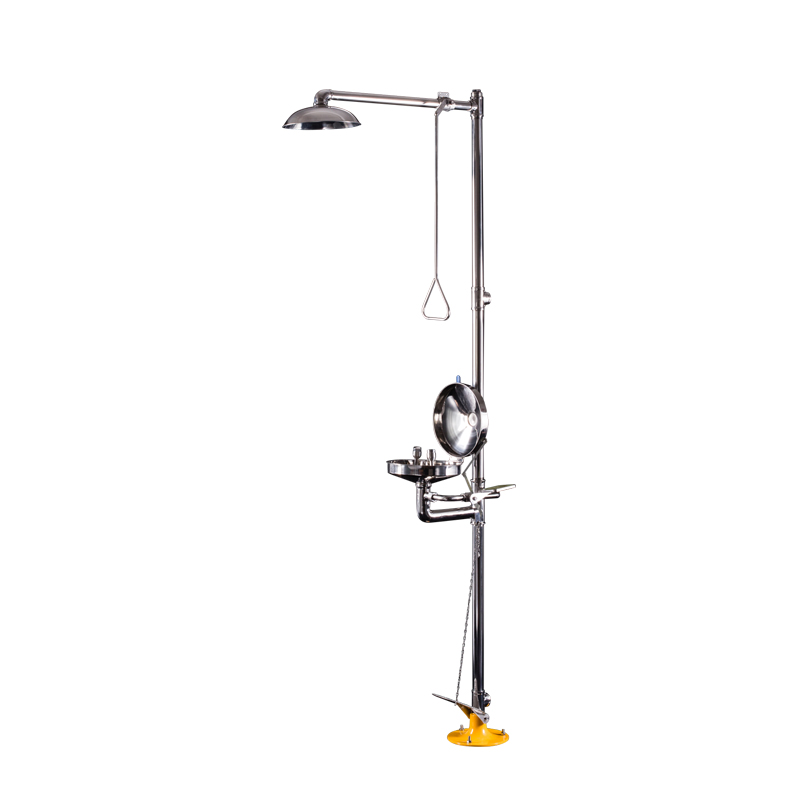

Piping 5/4 inces | Stainless steel 304 | Stainless steel 304 | Stainless steel 304 ABS coated | Stainless steel 304 ABS coated | Stainless steel 304 | Stainless steel 304 |
Water inlet height mm | 1580 | 1580 | 1580 | 1580 | 1580 | 1580 |
Waste water outlet height mm | 150 | 150 | 150 | 150 | 150 | 150 |
| Foot pedal | without | with | without | with | with | without |
Shower water flow min | 120-180L | 120-180L | 120-180L | 120-180L | 120-180L | 120-180L |
Eye wash water flow min | 12-18L | 12-18L | 12-18L | 12-18L | 12-18L | 12-18L |
Water pressure Mpa | 0.25-0.4 | 0.25-0.4 | 0.25-0.4 | 0.25-0.4 | 0.25-0.4 | 0.25-0.4 |
PRODUCT DETAILS
The main material is stainless steel, with high-brightness epoxy resin surface coating, which is anti-corrosion, antiultraviolet radiation and anti-leak.
The spray and eye wash is controlled through ball valve and spiral sealing structure, which is convenient for operation, fast open and close and reliable sealing.
The spray and eye wash is controlled through ball valve and spiral sealing structure, which is convenient for operation, fast open and close and reliable sealing.
PRODUCT APPLICATION
ZOYET eyewash shower station is an essential safety product for any workplace that handles potentially hazardous chemicals or materials. This unit combines an emergency eye wash station and an emergency shower and eye wash, providing comprehensive first aid in the event of an accident.
The eyewash shower station is designed to be easy to use, with a user-friendly lever that activates the water flow. The unit is constructed from durable materials and is resistant to corrosion and impact damage, ensuring it will stand up to the rigors of industrial use.
If an accident does occur, our eyewash shower station provides quick and effective relief to the affected area. The emergency eye wash station delivers a gentle stream of water to flush the eyes, while the emergency shower and eye wash provides a larger water flow for full-body cleansing.
The eyewash shower station is designed to be easy to use, with a user-friendly lever that activates the water flow. The unit is constructed from durable materials and is resistant to corrosion and impact damage, ensuring it will stand up to the rigors of industrial use.
If an accident does occur, our eyewash shower station provides quick and effective relief to the affected area. The emergency eye wash station delivers a gentle stream of water to flush the eyes, while the emergency shower and eye wash provides a larger water flow for full-body cleansing.
