Model No: CP.01.1045_V1
Combustible Cabinet
Combustible safety cabinet Comply with OSHA 29 CFR1910.106 and NFPA CODE30 regulations, and design, test, and produce in accordance with FM certification project requirements. This product has passed the EU EN14470-1 standard and CE certification, with a standardized safety warning color cabinet that represents different types of storage substances, identifies, organizes classification, and distinguishes substances or liquids.
minimum order :
1
Quantity :
SAFETY CABINET

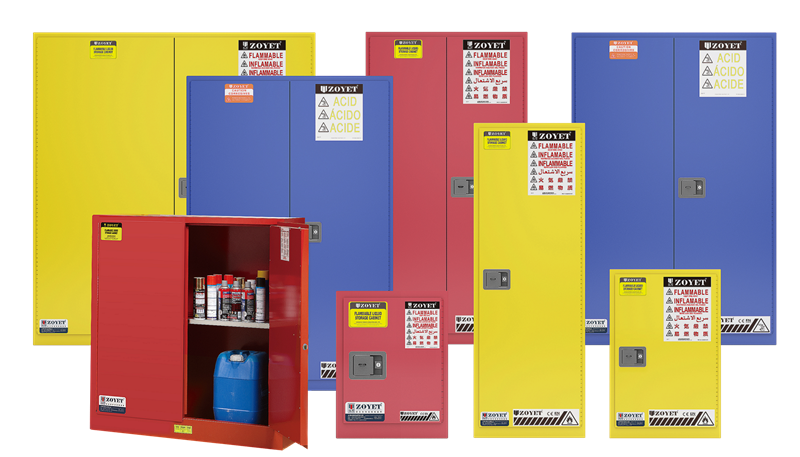

ZOYET safety storage cabinets,also known as chemical storage cabinet, offer market high performance protection and code-compliant storage for flammable,corrosive,toxic and other chemical liquids.This safety cabinet help reduce the risk of chemical exposure and fire hazards.
Combustible safety cabinets, also known as combustible cabinets、safety cabinet for combustible liquids or red cabinets,This safety cabinet is specifically designed to provide a secure and reliable storage solution for combustible materials.
Combustible safety storage cabinets are usually used to store fuel, ink and other combustible liquids (high flash point liquid, liquid flash point >37.8°C).Such as paint, ink, lacquer, enamel, dyeing and epoxy resin, etc.
ZOYET safety cabinet complies with OSHA CFR29 1910.106&NFPA Code 30 Compliance.
SPECIFICATION

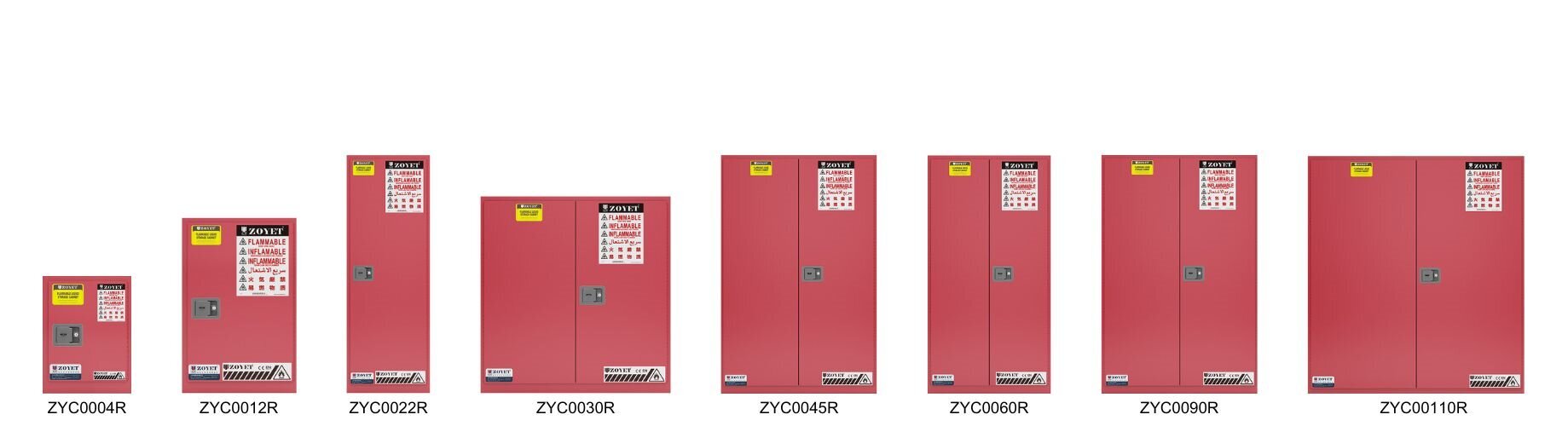

Model Red | Capacity Gal/Ltr | H*W*D mm | Adjustable shelves pcs | Shelves capacity kg | Door type | Certificate |
| ZYC0004R | 4/15 | 560*430*430 | 1 | 50 | single door | CE,EN,OSHA |
| ZYC0012R | 12/45 | 890*590*460 | 1 | 50 | single door | CE,EN,OSHA |
| ZYC0013R | 13/45 | 460*1090*460 | / | / | double door | CE,EN,OSHA |
| ZYC0022R | 22/83 | 1650*590*460 | 2 | 50 | single door | CE,EN,OSHA |
| ZYC0023R | 23/87 | 890*860*490 | 1 | 50 | double door | CE,EN,OSHA |
| ZYC0030R | 30/114 | 1120*1090*460 | 1 | 100 | double door | CE,EN,OSHA |
| ZYC0045R | 45/170 | 1650*1090*460 | 2 | 100 | double door | CE,EN,OSHA |
| ZYC0060R | 60/227 | 1650*860*860 | 2 | 100 | double door | CE,EN,OSHA |
| ZYC0090R | 90/340 | 1650*1090*860 | 2 | 100 | double door | CE,EN,OSHA |
| ZYC0110R | 110/410 | 1650*1500*860 | 2 | 100 | double door | CE,EN,OSHA |
PRODUCT DETAILS
 |  |  |  |

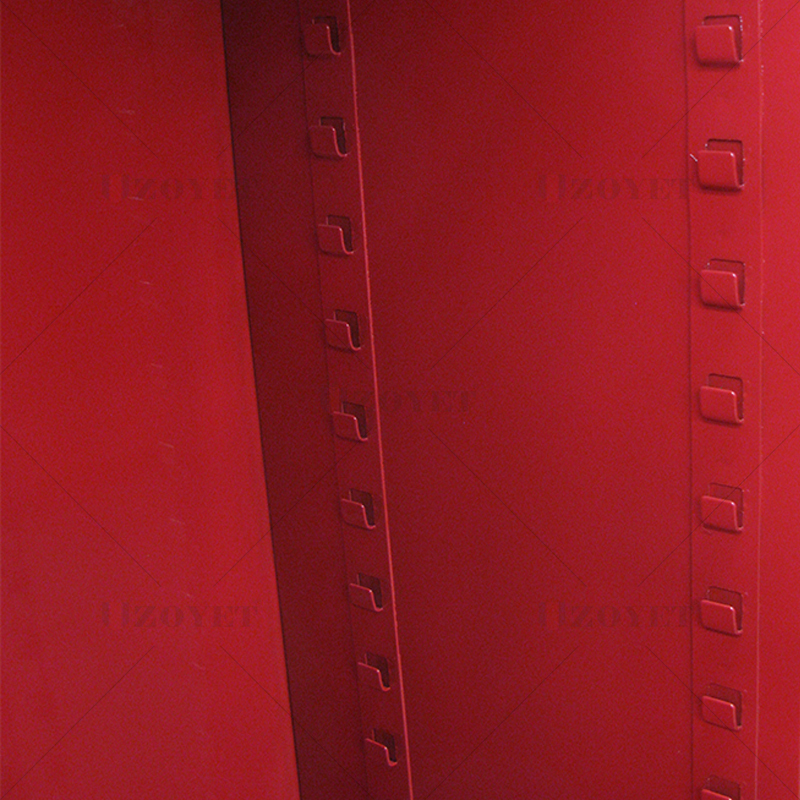

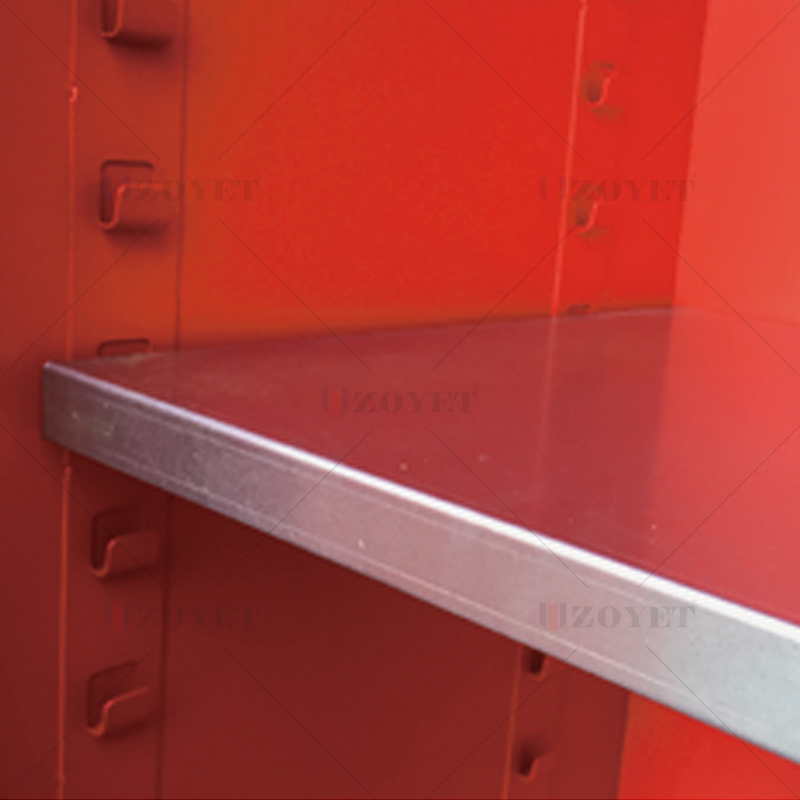

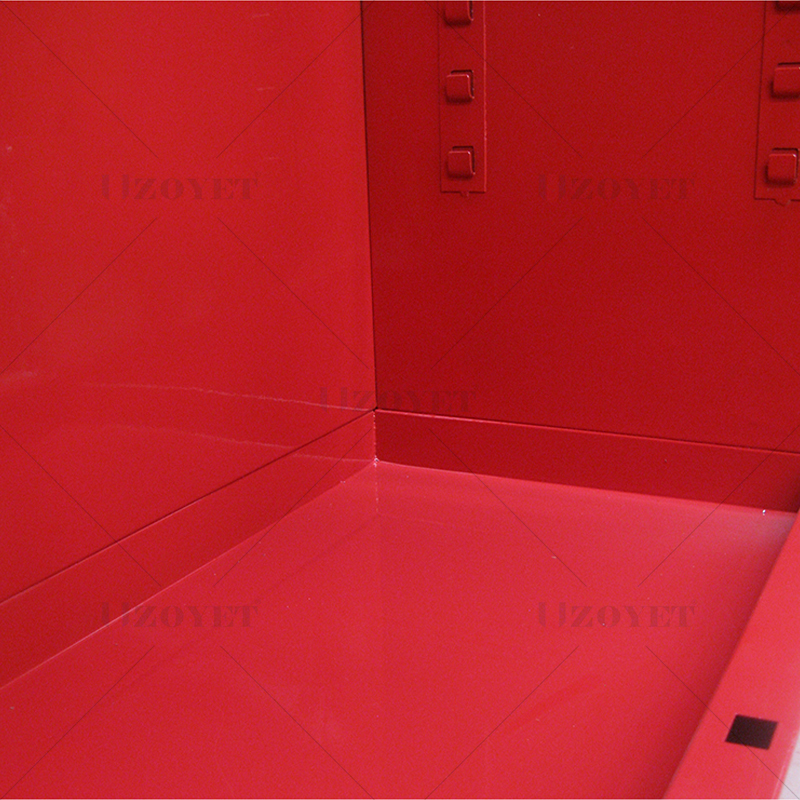

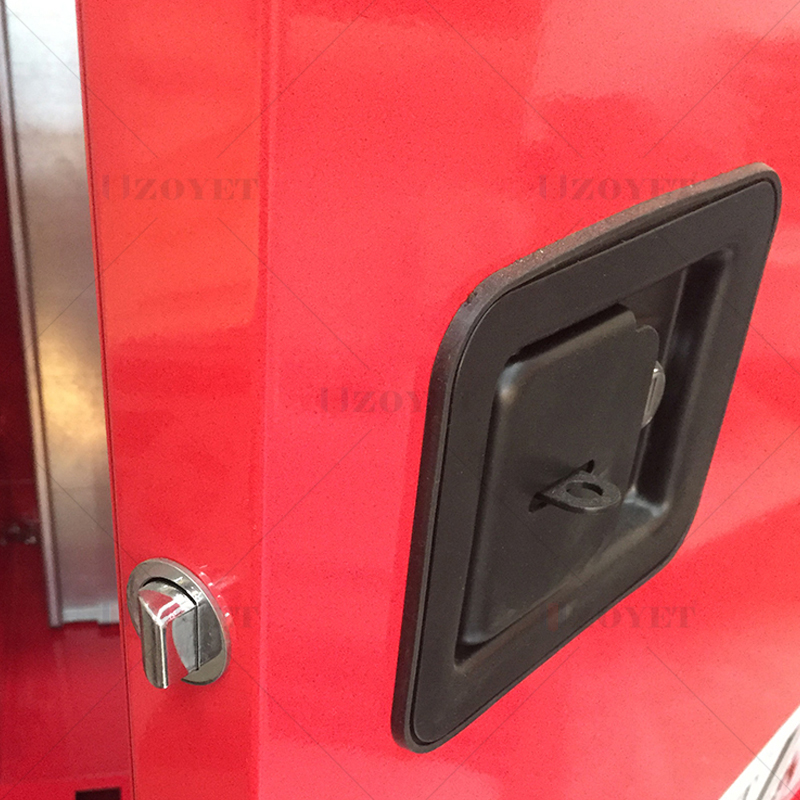

| Galvanzied shelves through spot welding, and the two layers are separated by 38mm to form a good fireproof insulation layer. | Safety cabinet hook, the galvanzied shelves can be adjusted on the hook. | Three-point linkage lock reduces friction or mechanical sparks and reduces static electricity accumulation. | Leakproof containment sump prevents accidental leakage of chemicals from overflowing. |
PRODUCT PACKING
 |  |

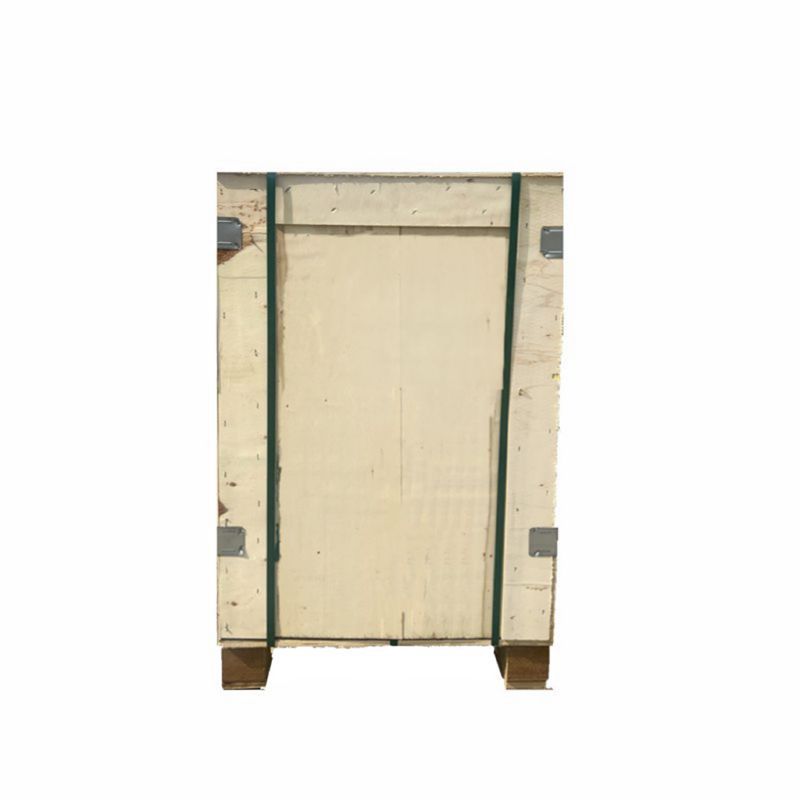

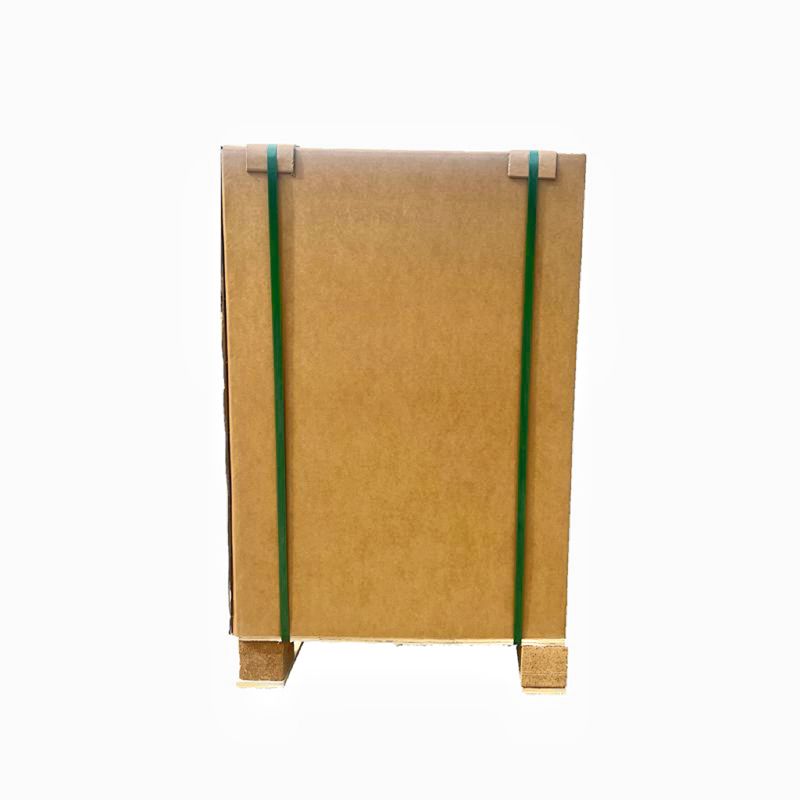

| Carton packing | Wooden case packing |
  | |

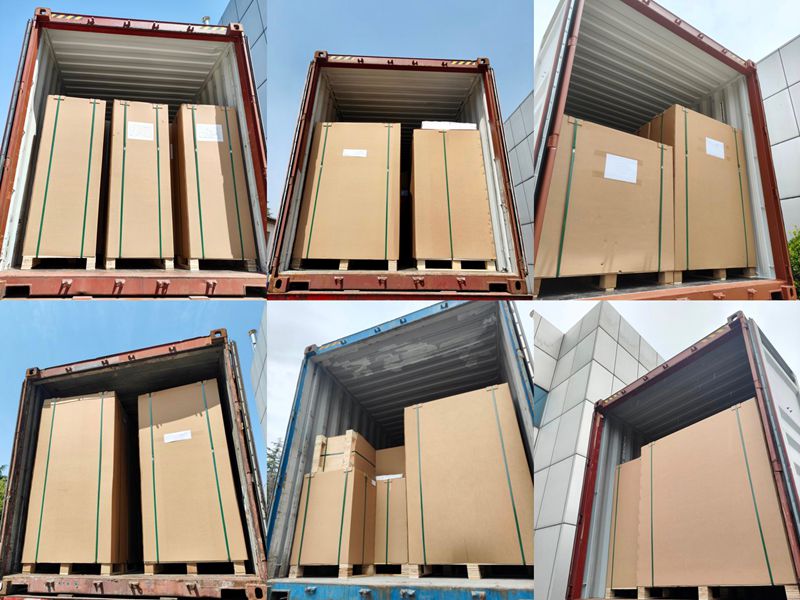

| Loading capacity | |

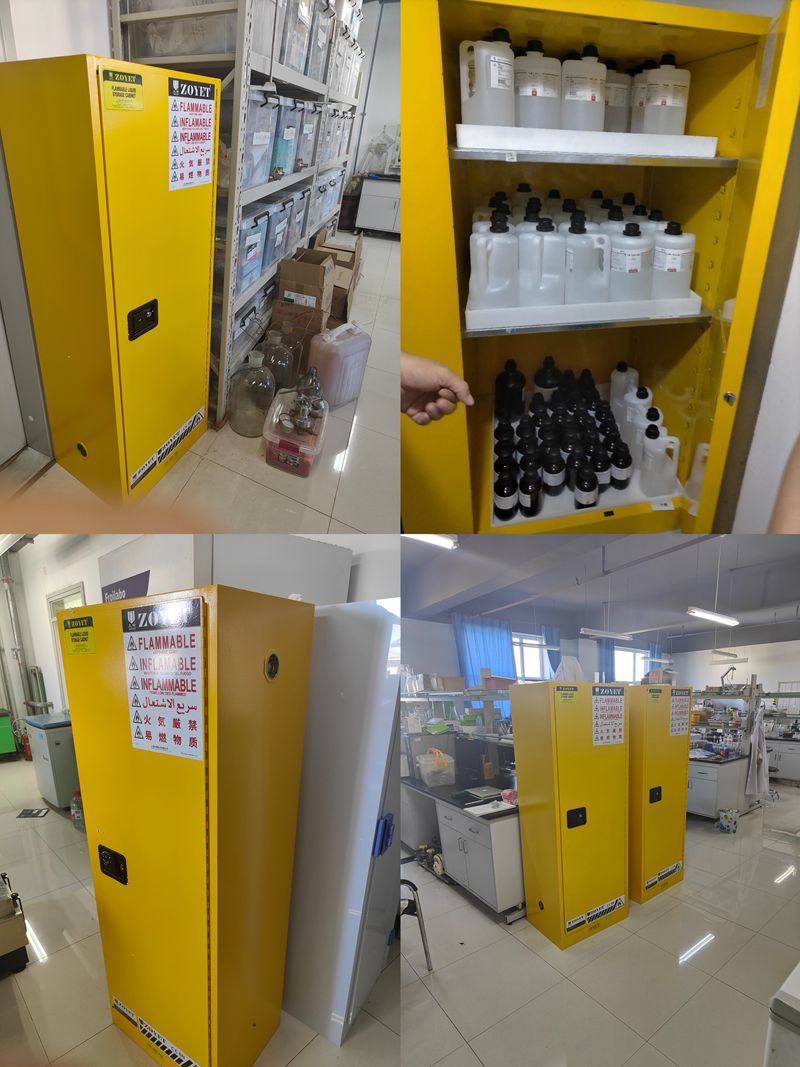

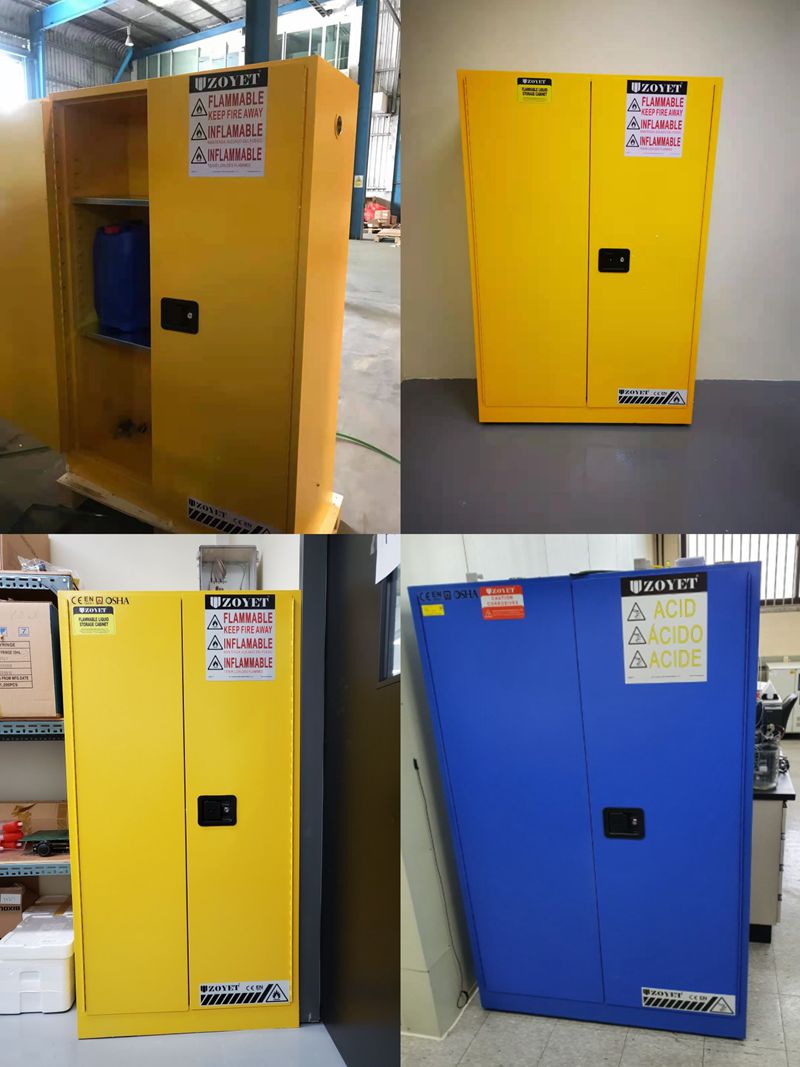

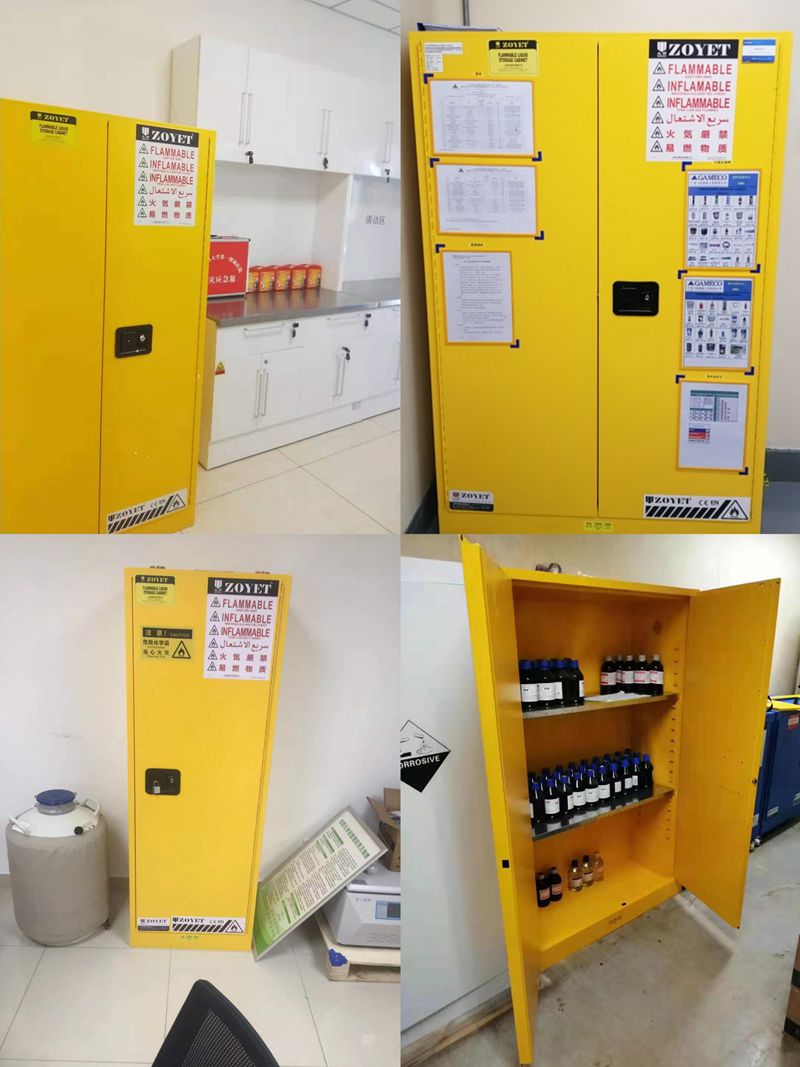

CUSTOMER FEEDBACK
Combustible safety cabinets can be found in industries like chemical manufacturing, oil & gas, paint & coatings, and pharmaceuticals among others. The cabinets come in a range of sizes and designs to suit the specific needs of each industry. In chemical manufacturing, for instance, combustible safety cabinets are used to store highly flammable solvents and chemicals safely. In the oil & gas industry, they are used to store fuels and lubricants safely. Similarly, in the pharmaceutical industry, combustible safety cabinets are used to store flammable materials and chemicals used in drug manufacturing. Overall, combustible safety cabinets have become a critical component in ensuring the safety of workers and assets in various industries.
