Don’t Cross These Critical Safety Lines for Outdoor Gas Cylinder Storage

Left exposed under blazing sun, a pressurized gas cylinder can turn into a ticking time bomb. Gas cylinders are indispensable energy supplies for industrial production, construction sites, scientific labs and all kinds of outdoor operations. Yet outdoor storage exposes them to intense sunlight, wind, rain and drastic temperature swings, bringing severe hidden safety hazards. When a full steel cylinder sits under direct sunshine, internal pressure surges sharply with rising temperatures, which may trigger cylinder rupture once pressure exceeds the limit. If gas leakage occurs simultaneously, catastrophic consequences will follow.

What non-negotiable safety red lines must you abide by for outdoor gas cylinder storage? We break down all key standards systematically below.

1. Comply with National Regulations: The Non-Negotiable Baseline

Outdoor gas cylinder storage cannot be randomly arranged on empty ground — strict national codes govern every detail.

TSG 23-2021 Technical Regulation on Gas Cylinder Safety: Cylinders must be protected from rain and direct sunlight. Incompatible gas cylinders (combustible vs oxidizing gases) cannot be stored together, with a minimum separation distance of 5 meters. All cylinders shall stand upright and be secured with anti-tip brackets.

GB 50016-2014 Code for Fire Protection Design of Buildings: If acetylene storage volume exceeds 240 cubic meters (around 40 cylinders), a Grade II fire-resistant warehouse is mandatory, with a fire separation distance of no less than 10 meters from adjacent buildings.

China’s Hazardous Chemical Safety Law (effective May 1, 2026): Establishes four full-chain strict control mechanisms for gas safety: comprehensive constraints, real-time monitoring, and standardized emergency response.

ZOYET Optimized Solution

Most construction sites face space constraints, with flimsy temporary sunshades lacking fire resistance. Open-air stacking easily violates regulatory rules.

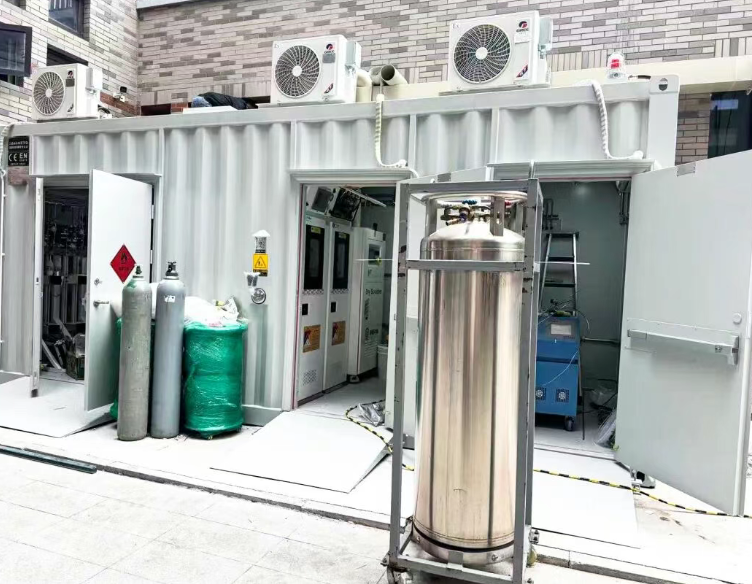

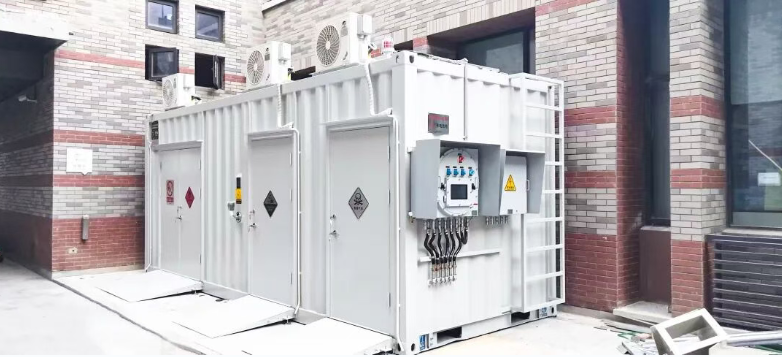

ZOYET Outdoor Gas Cylinder Storage Containers fully comply with the above national standards and the new hazardous chemical law. No permanent civil warehouse construction is required; plug-and-play deployment eliminates legal risks of non-compliant storage from the source.

2. Site Selection: Eligible Zones for Outdoor Cylinder Placement

Site planning is the core of outdoor gas cylinder management. Cylinders should be stored in covered outdoor zones with sun and rain shelters or dedicated storage vaults — open-air stacking is strictly prohibited.

Three core site selection principles:

Well-Ventilated & Dry: Prevent gas accumulation leading to explosions and bottom corrosion. No underground trenches, hidden tunnels or bottom air vents inside storage areas.

Far From Heat Sources: Maintain a safety gap of over 10 meters from offices and residential areas; combustible gas cylinders must stay at least 10 meters away from open flames.

Waterproof & Flood-Resistant: Install drainage systems during flood seasons to avoid cylinder submersion.

ZOYET Optimized Solution

ZOYET outdoor gas storage containers integrate all site protection features in one unit: thickened anti-corrosion steel plates, fully sealed sun/rainproof structure, lightning & static grounding system, leak-proof spill pallets, and full fire & explosion resistance. It perfectly solves common pain points including unsuitable storage locations and inadequate protection.

3. Environmental Protection: Sun Shading, Temperature & Humidity Control

Unstable outdoor weather makes direct sunlight exposure extremely dangerous for gas cylinders.

Sun Shading & Cooling: Sunshade measures are mandatory when ambient temperature exceeds 40°C; ultra-pure gas storage temperature shall stay below 30°C.

Rain & Moisture Proof: Relative humidity must be controlled under 80% to avoid cylinder wall thinning caused by corrosion.

Forced Ventilation: Qualified outdoor cylinder cabinets must be equipped with explosion-proof forced ventilation fans to continuously discharge leaked gas.

ZOYET Optimized Solution

ZOYET outdoor gas storage containers feature intelligent temperature control and explosion-proof forced exhaust systems, fully sealed to block high-temperature sunlight. The epoxy anti-corrosion cabinet body resists moisture and rust. Built-in explosion-proof fans and combustible gas detectors trigger audible & visual alarms and automatic exhaust upon leakage, eliminating three major risks: overpressure from sun exposure, metal corrosion from dampness, and dangerous gas buildup.

4. Classified Storage: Why Oxygen & Acetylene Cylinders Cannot Be Stored Side by Side

Incompatible gas cylinders require separate storage — oxygen and acetylene are the most typical example. Acetylene is flammable, while oxygen acts as an oxidizer. If acetylene leaks and ignites, the blast may rupture oxygen cylinders, releasing oxygen to fuel raging fires.

Official safety codes specify:

Oxygen and acetylene cylinders must be spaced a minimum of 5 meters apart.

If stored under the same roof, they must be fully separated by a fire barrier wall with a fire resistance limit of at least 3 hours, with independent access doors for each compartment.

Other incompatible gas pairs are also banned from mixed storage: hydrogen & chlorine, hydrogen & oxygen, liquid chlorine & liquid ammonia, etc.

Empty and full cylinders must be separated with clear marking signs.

ZOYET Optimized Solution

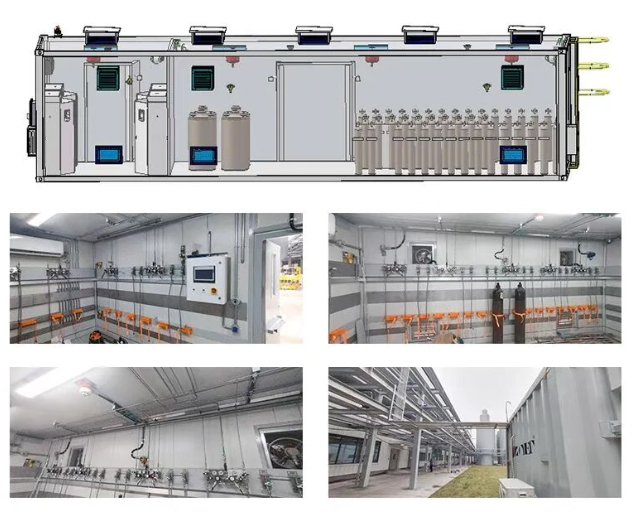

Custom multi-compartment ZOYET outdoor gas storage containers feature fire-resistant partition walls between compartments. Each compartment comes with independent explosion-proof ventilation and alarm systems, enabling separated oxygen & acetylene storage to easily meet the 5-meter separation and fire isolation requirements. Standard safety warning labels clearly divide empty and full cylinder zones to eliminate mixed-storage violations.

5. Anti-Tip Securing: Stable Placement Equals Fundamental Safety

If a cylinder topples over, its valve may break off. High-pressure gas ejection creates recoil force that hurls the cylinder like a projectile, and leaked flammable gas can trigger explosions.

Per the TSG 23-2021 Technical Regulation on Gas Cylinder Safety:

Cylinders shall stand upright and be locked with anti-tip fixtures.

If placed horizontally, anti-rolling measures are required, with stacking height limited to 5 layers maximum.

ZOYET Optimized Solution

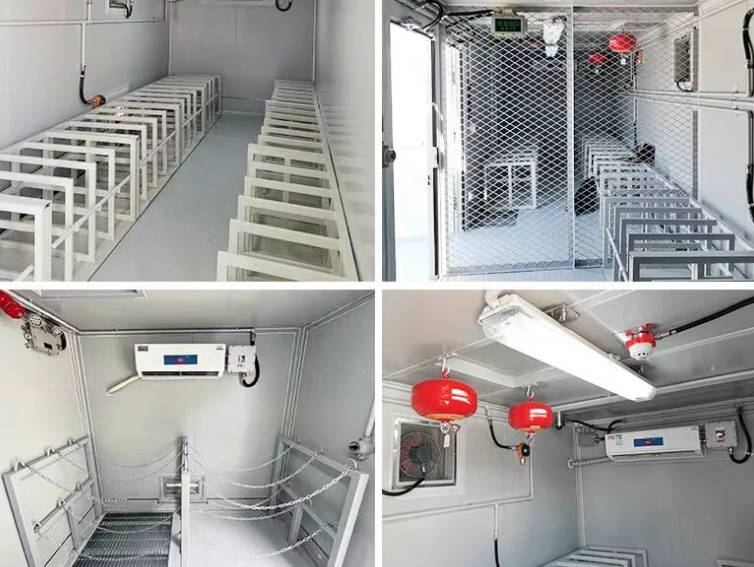

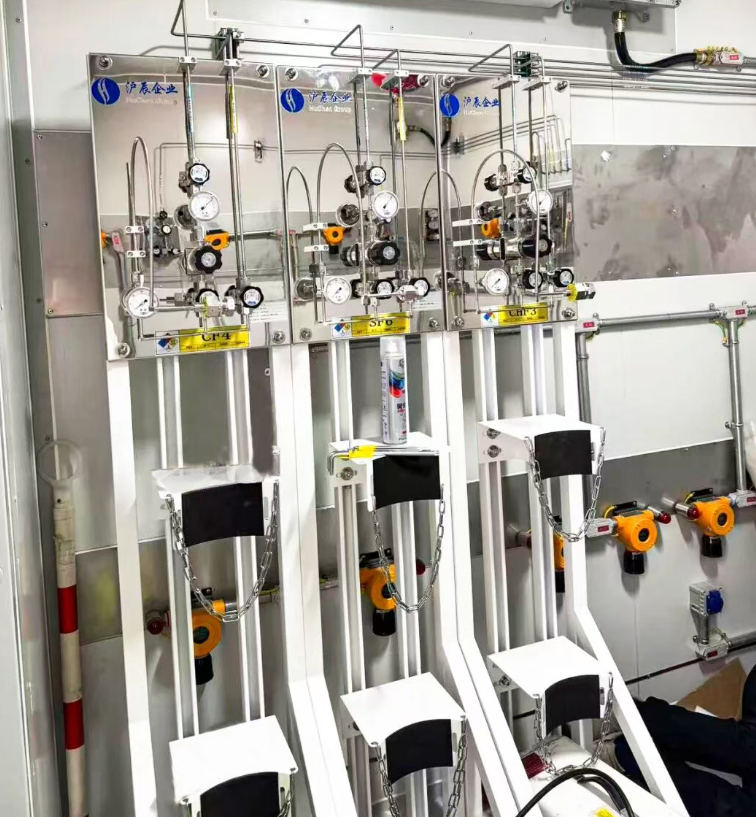

ZOYET outdoor containers are pre-installed with heavy-duty cylinder clamps, anti-tip chains and limit brackets, fully equipped with compliant anti-toppling hardware at factory delivery to prevent tip-over from external collisions. The fully enclosed cabinet also avoids accidental knocks by staff and scratches from vehicles.

Critical Special Reminder

Acetylene cylinders must stand upright for 20 minutes before connecting pressure reducing valves for use.

6. Special Handling for Extreme Summer & Winter Weather

Summer Operations

High temperatures boost internal cylinder pressure, with liquefied gas cylinders facing extreme overpressure risks under direct sunlight. Store all cylinders in cool shaded areas; spray water cooling is allowed when necessary. Never use expired, scrapped or unqualified cylinders with illegal overfilling.

Winter Operations

Pressure reducers and pipelines may freeze in cold weather. Do NOT thaw with open flames or heat sources above 40°C. Use warm water below 40°C or move cylinders indoors for slow defrosting.

ZOYET Optimized Solution

Optional dual cooling & heating explosion-proof constant temperature systems are available for ZOYET outdoor containers: automatic exhaust cooling in summer and stable heat preservation in winter to prevent pipeline freezing. Minimal manual intervention is needed, delivering all-weather protection for harsh climates and drastically cutting daily management workload.

Final Key Safety Reminder

Safety leaves no room for negligence — never cross mandatory safety red lines. Outdoor gas cylinder storage demands robust safety awareness, professional expertise and strict execution. Every link matters, from site layout and environmental protection to classified storage, anti-tip securing, seasonal adjustments and routine inspections.

Temporary sunshades and open-air stacking are only makeshift solutions that fail to meet full national standard requirements. ZOYET outdoor gas cylinder storage containers integrate all-round protection functions: sun & rain shielding, explosion-proof ventilation, lightning & static prevention, fire isolation, anti-tip fixtures and intelligent leakage alarms. They can be rapidly deployed for all outdoor scenarios to replace traditional open-air or makeshift shed storage, fully implementing every mandatory safety regulation.

Only with professional compliant storage equipment, regular safety management and embedded safety awareness can enterprises firmly secure the critical safety baseline of production, keeping all gas cylinders safely contained outdoors.
