Model No: CP.25.05002

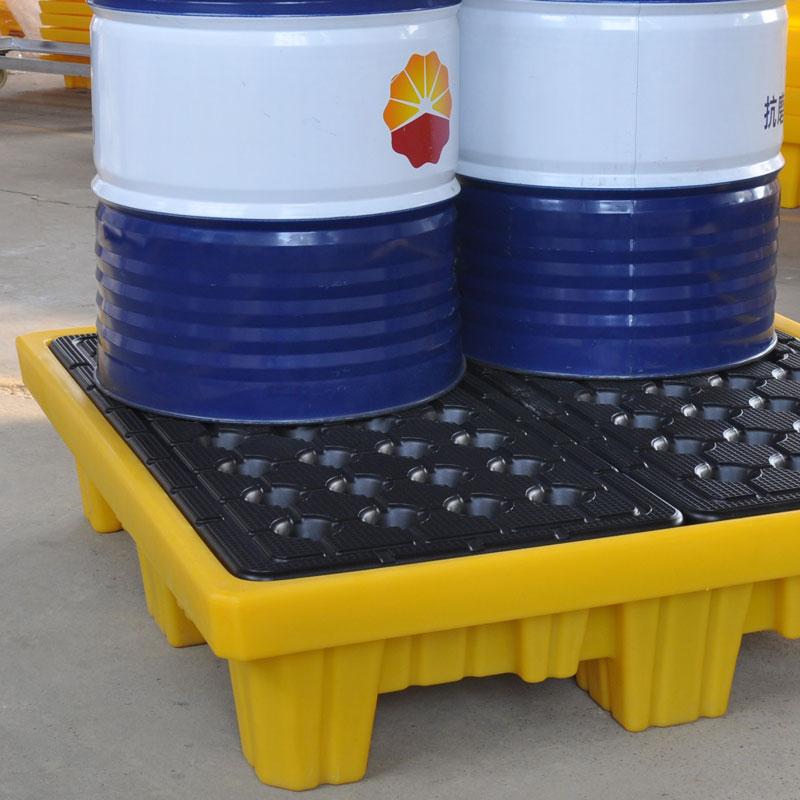

Polyethylene spill containment pallet
Huanawell polyethylene spill containment pallet is durable, chemically-resistant and environmentally-responsible,made with 100% polyethylene.
minimum order :
1
Quantity :
POLYETHYLENE SPILL CONTAINMENT PALLET

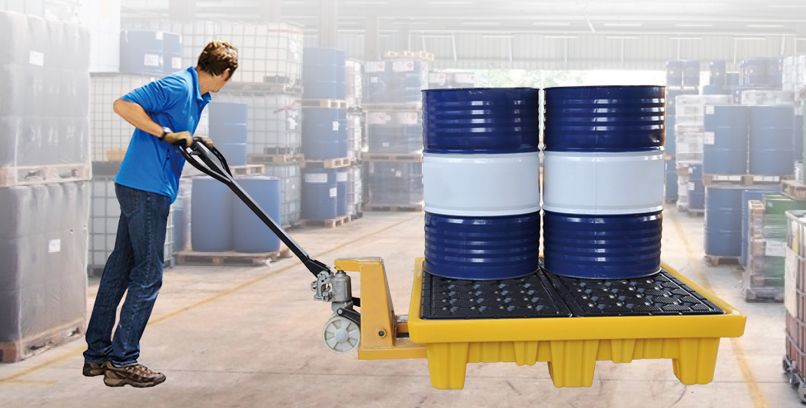

Used for spill control, this PE polyethylene spill pallet is used forthe transportation of multiple kinds of chemical products, and alscoperations like oil extraction, filling and packing are valid to be carriedout on it.
The material of polyethylene is able to against most chemical,the pallet structure is solid and stackable, stacking pallets can savespace and shipping cost.
The material of polyethylene is able to against most chemical,the pallet structure is solid and stackable, stacking pallets can savespace and shipping cost.
SPECIFICATION
| MODEL | Spill Deck | Spill Pallet | ||
LxWxH mm | 1300x690x150 | 1300*1300*150 | 1300*690*300 | 1300*1300*300 |
| Valid for drums of 200L | 2 | 4 | 2 | 4 |
Spill containment volume L | 65 | 120 | 120 | 250 |
Static load kg | 1200 | 2600 | 1200 | 2600 |
Dynamic load kg | 600 | 1200 | 600 | 1200 |
| Cargo No. | ZYPE002-H | ZYPE004-H | ZYPE022-H | ZYPE044-H |
| Model | ZYPE002-H | |||||

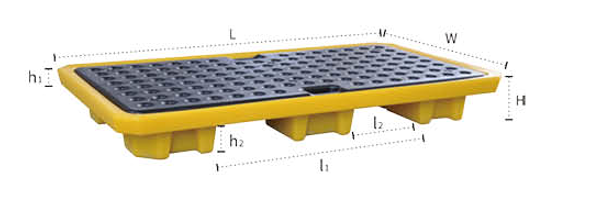

| Polyethylene spill containment deck(for two drums) mm | ||||||
| L | W | H | l1 | l2 | h1 | h2 |
| 1300 | 690 | 150 | 685 | 250 | 45 | 100 |
Valid for double direction operation of fork lifter and model 550/685 pallet jacks | ||||||
| Model | ZYPE004-H | |||||

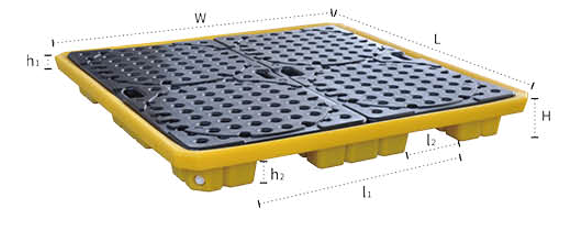

| Polyethylene spill containment deck(for four drums) | ||||||
| L | W | H | I1 | I2 | h1 | h2 |
| 1300 | 690 | 150 | 835 | 255 | 45 | 100 |
Valid for double direction operation of fork lifter and model 685 pallet jacks | ||||||
| Model | ZYPE022-H | |||||

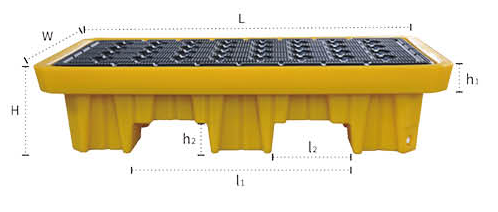

| Polyethylene spill containment pallet(for two drums) mm | ||||||
| L | W | H | l1 | l2 | h1 | h2 |
| 1300 | 690 | 300 | 725 | 260 | 55 | 100 |
Valid for double direction operation of fork lifter and model 550/685 pallet jacks | ||||||
| Model | ZYPE044-H | |||||

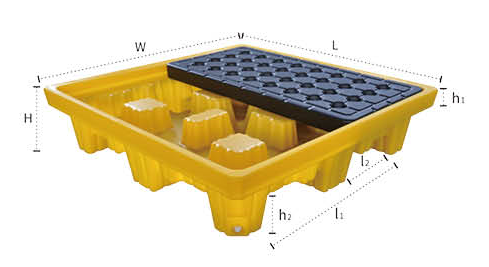

| Polyethylene spill containment pallet(for four drums) mm | ||||||
| L | W | H | l1 | l2 | h1 | h2 |
| 1300 | 1300 | 300 | 845 | 350 | 55 | 100 |
Valid for double direction operation of fork lifter and model 685 pallet jacks | ||||||
PRODUCT DETAILS
 |  |  |

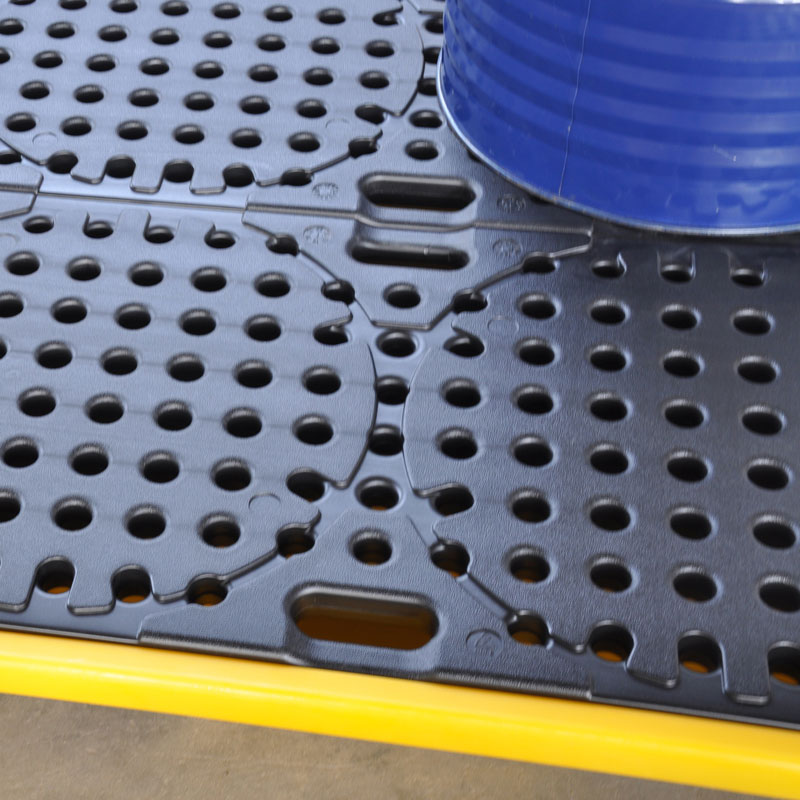

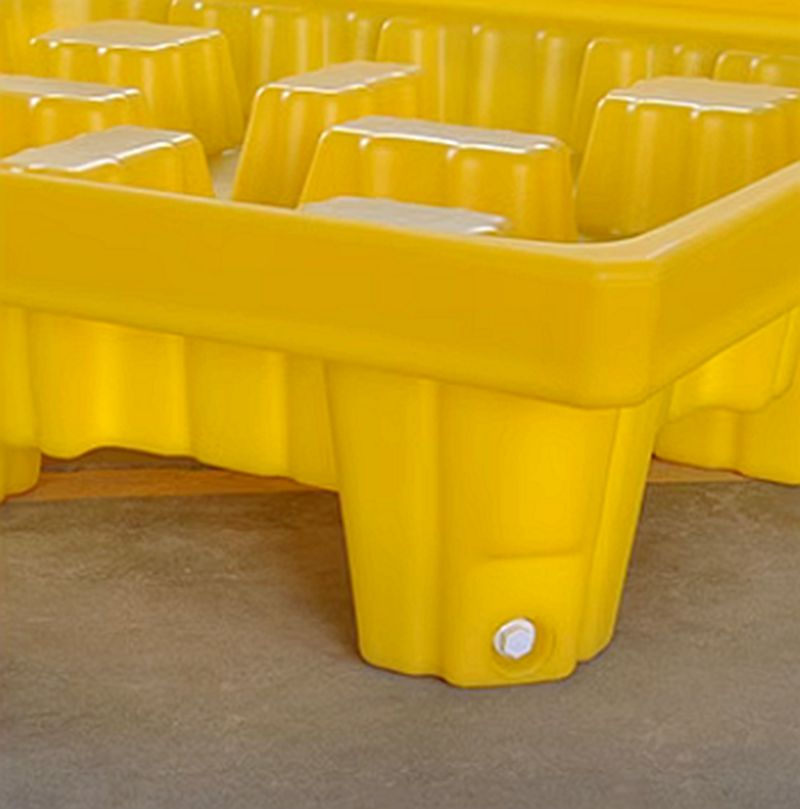

| The orange peel surface makes sure the grid won't break under fuloaded. the arid is able to be taken off: draining outlet is set for fasspeed liquid treatment. | Thickened side frames and central load-bearing structure, with drain grooves; hexagonal drain plugs to facilitate the discharge of leaked liquids. | The spill containment decks and pallets are able to be transferrecby pallet jacks. and they are able to carry oil drums of 200L, chemical drums, all kinds of containers and small mechanisms. |
PRODUCT PACKING
 | |

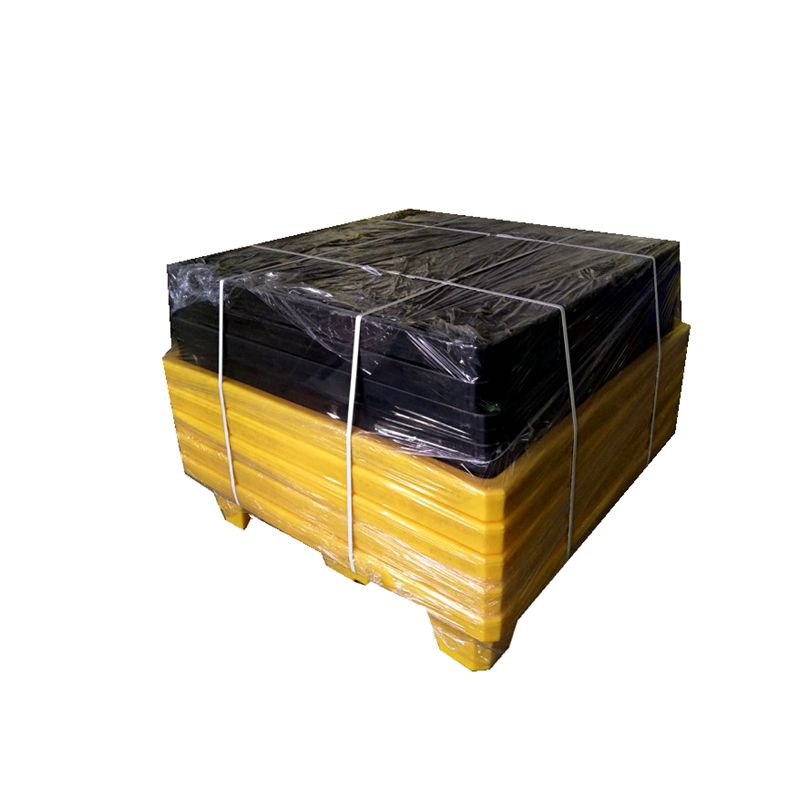

| Wrap the pallet around with film cloth and fix it with packing strap. |
